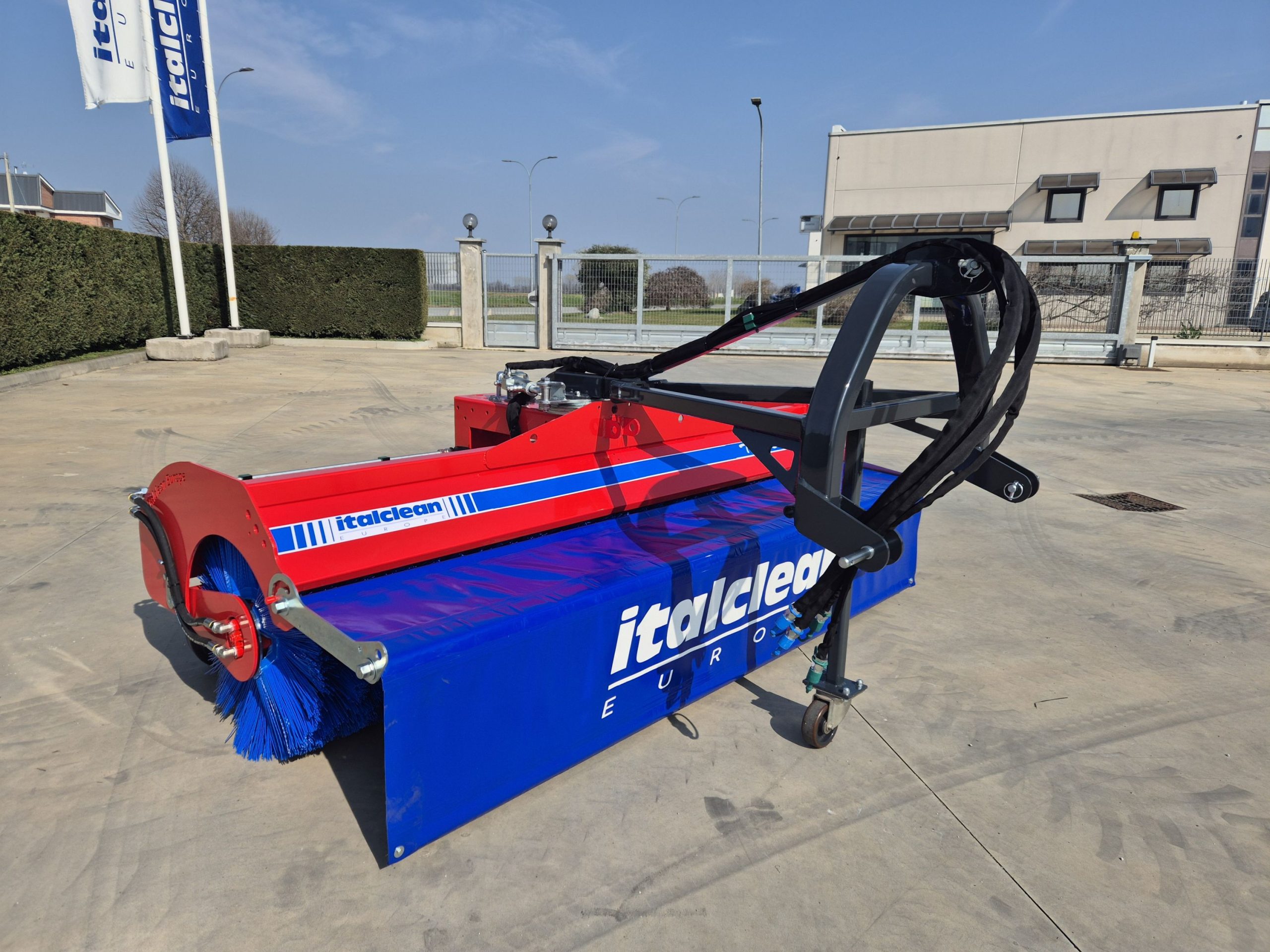

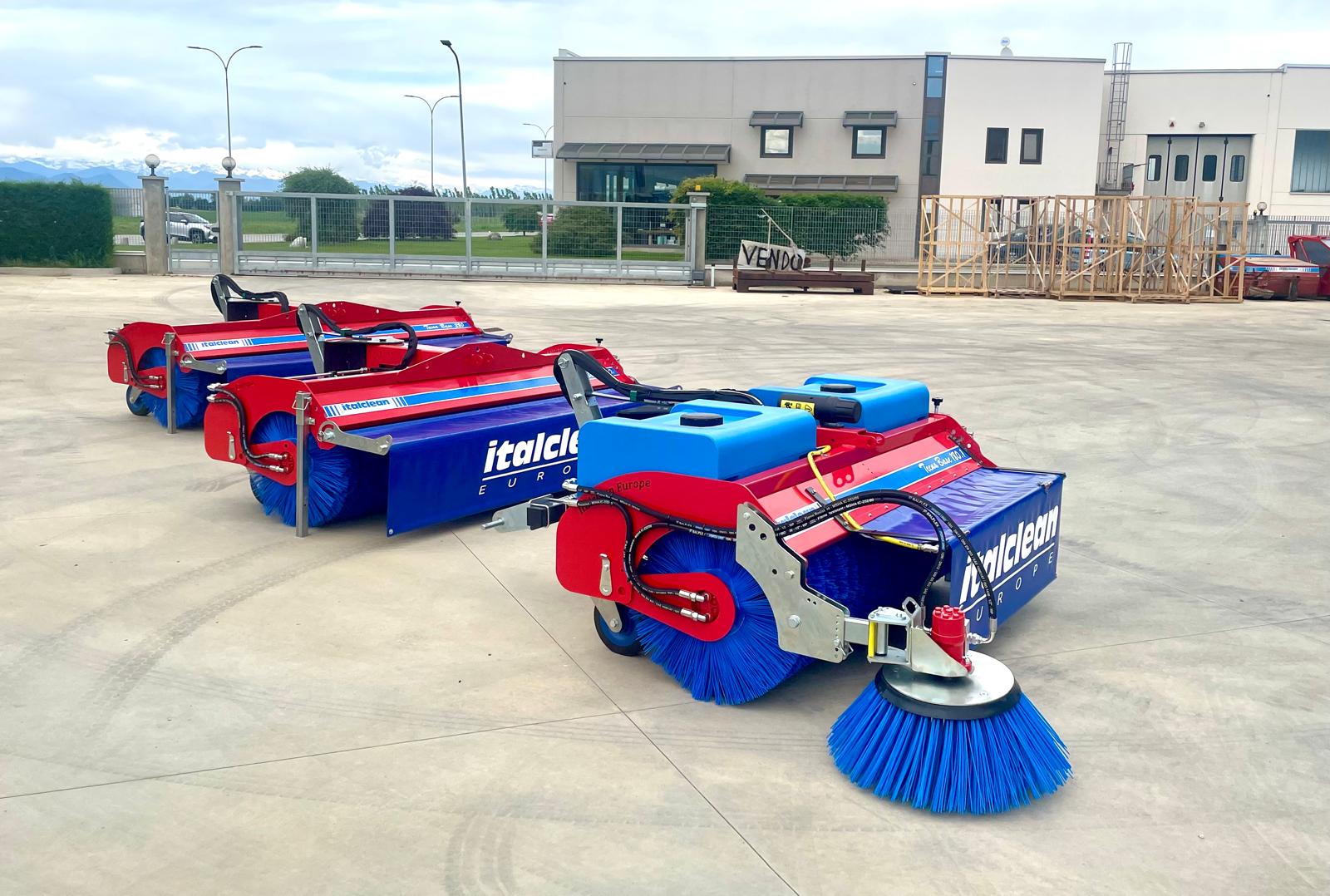

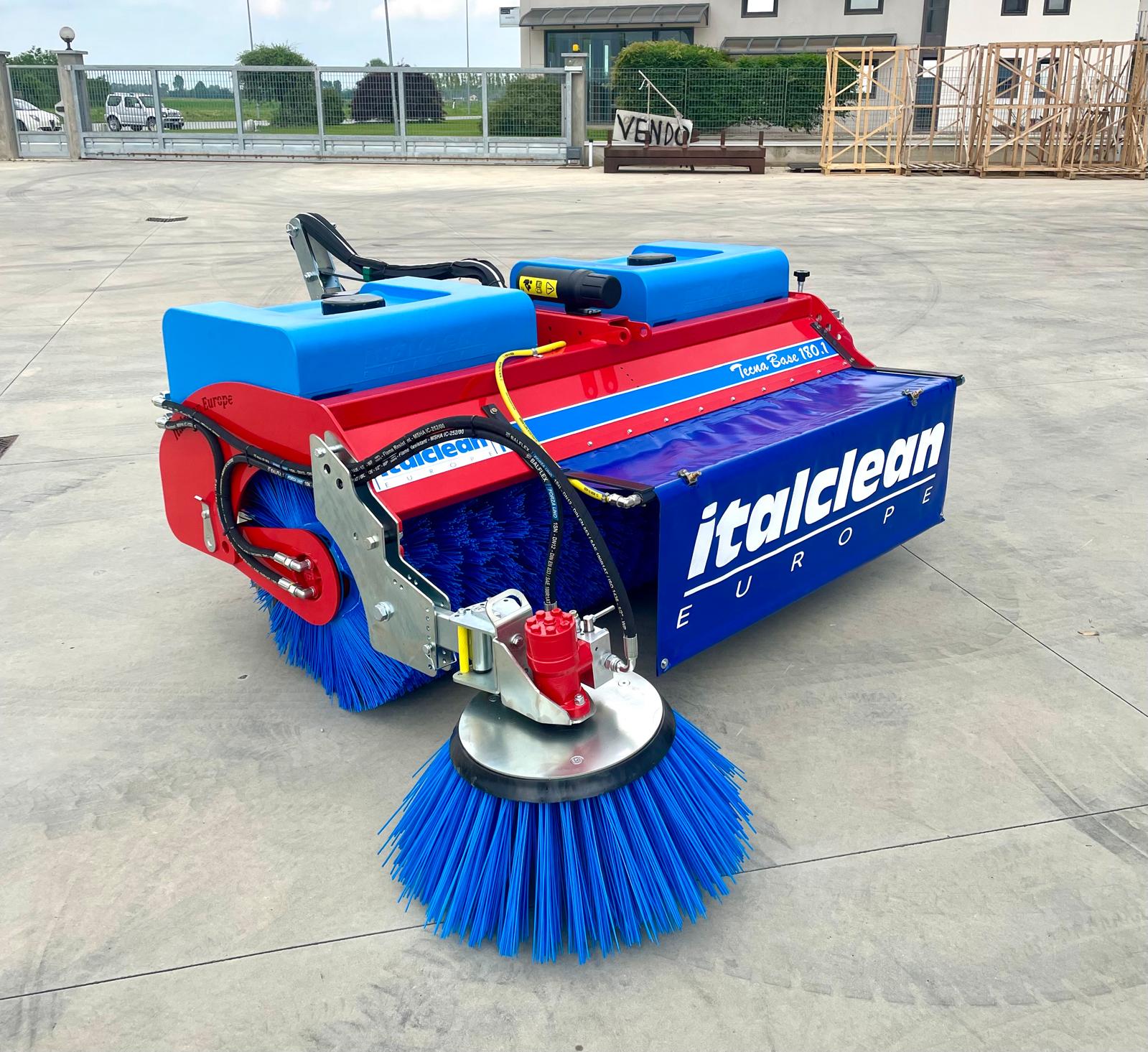

Tecna Combi Professional

Multipurpose sweeper

TECNA Combi Professional series , one machine for a variety of uses.

Sweeper: when set up with the side brushes, watering unit and container, unhooking it or keeping it raised in the unloading position returns to its sweeping function for quick clearing operations of bulky debris or snow.

Sweeper : Angleable with special manual (hydraulic upon request) orientation head without container for quick clearing operations of bulky debris or snow.

Combi Neve: by unhooking the container in a few seconds, a special snow blade with polyethylene wheel can be mounted that is particularly suitable for snow clearing or snow plowing operations.

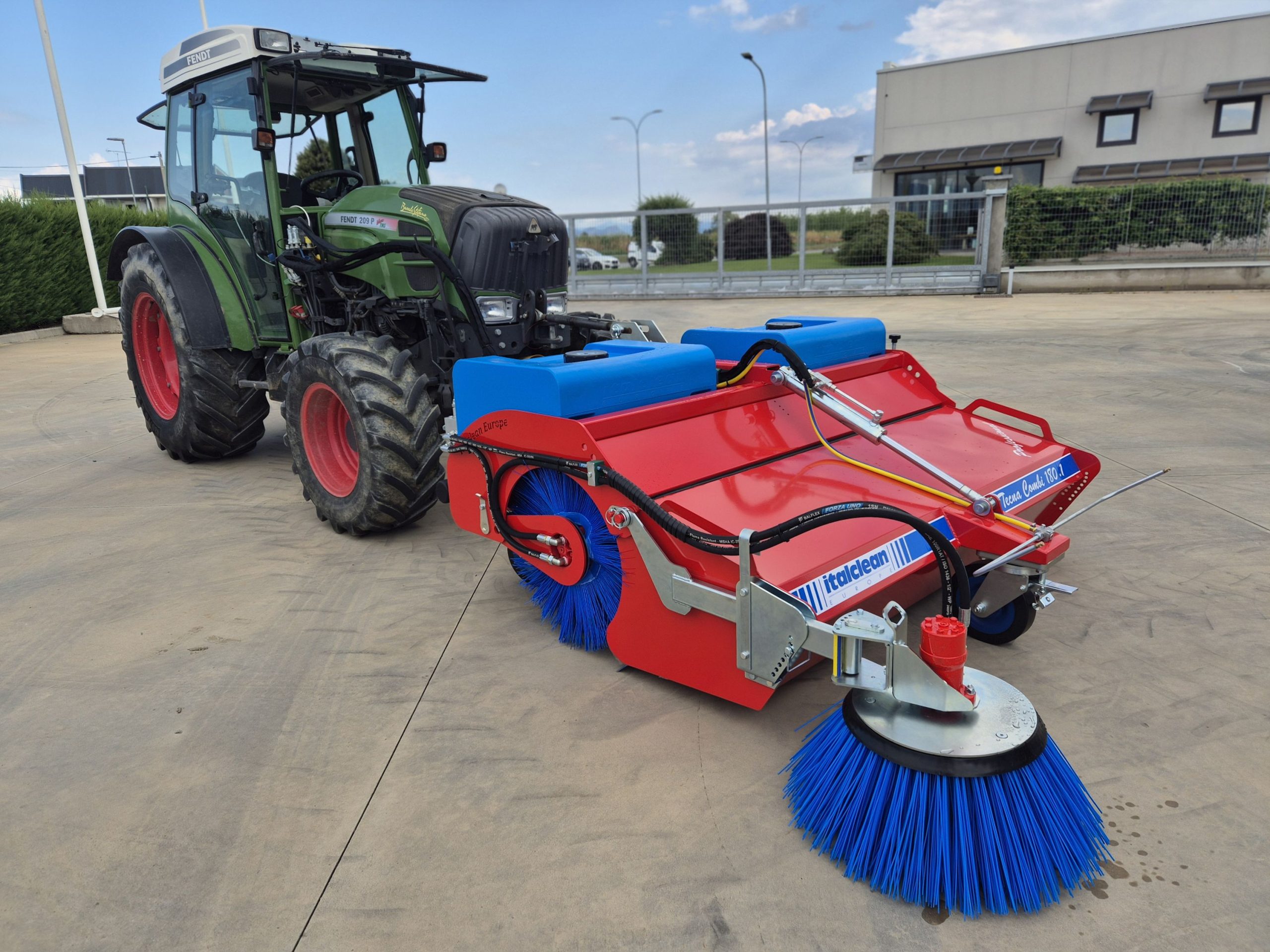

Prepared for application on tractors, telescopic handlers, skid steer loaders and forklifts by means of special intermediate attachments both front and rear.

Center brush equipped with Floating System: self-levelling to the surface to be cleaned with the desired pressure.

Composed of fully recyclable thermofused ring sectors diameter 65 cm.

Tecna Combi Magnum

Model	Machine weight (Kg)	Container capacity (Lt)	Water reserve (Lt)
MODEL 280	610	640	300

Tecna Combi Professional

Model	Size A with 1 brush (cm)	Size A with 2 brushes (cm)	Size B (cm)	Machine weight (Kg)	Container capacity (Lt)	Water reserve (Lt)	Brush diameter (cm)
MODEL 150	190	217	163	440	330	200	65
MODEL 180	220	247	193	470	380	200	65
MODEL 210	250	277	223	515	440	200	65
MODEL 240	280	307	253	555	500	200	65
MODEL 280	320	347	293	610	600	200	65

Model	Size A (cm)	Machine weight (Kg)	Water reserve (Lt)	Brush diameter (cm)
MODEL 150	163	390	200	65
MODEL 180	193	420
MODEL 210	223	450
MODEL 240	253	480
MODEL 280	293	510

Model	Size A (cm)	Machine weight (Kg)	Water reserve (Lt)	Brush diameter (cm)
MODEL 150	163	450	200	65
MODEL 180	193	480
MODEL 210	223	510
MODEL 240	253	540
MODEL 280	293	570

Why choose Italclean Europe ?

With 2 polypropylene water tanks,
with a capacity of 100 liters each,
integrated into the frame, offer great
autonomy, maintaining the height from
ground of 87 cm. allowing an excellent
visibility from the vehicle of even small
dimensions.

Side brushes oscillating and retracting on impact with base Ø mm.600 with three-dimensional adjustment.

No. 3 solid rubber wheels Ø mm 250×70 mounted on heavy duty swivel castor with protected bearings, load capacity Kg. 1600 each. Front wheel with parking brake.

Front 82° atomizing nozzles for dust suppression powered by electric water pump.

Floating System

Regulating valve

Floating System

Regulating valve

Central sector brush, ring-shaped
thermofused Ø 650mm with ppn bristles
1.8×2.5 mm or 2×3 mm
fully recyclable.
Hydraulic motor inserted internally
to the brush for a smaller footprint
and maximum security.

Regenerative flow valve (optional) and quick couplings for collection container release, maintaining the operation of the
central brush for sweeping operations, even with snowplow blade mounted.
